Design the system around the space.
From clear spoken word to live music, video, streaming and inclusive listening, Bridge AV supports the trade with AV design and product specification for spaces of different sizes, layouts and acoustic conditions.
Every room asks something different of the AV system.
Room shape, reflective surfaces, seating, visual restrictions and the balance between speech, music and media all affect the right approach. We help turn those requirements into a practical system design before the product list is finalised.
Turn the room requirements into a system plan.

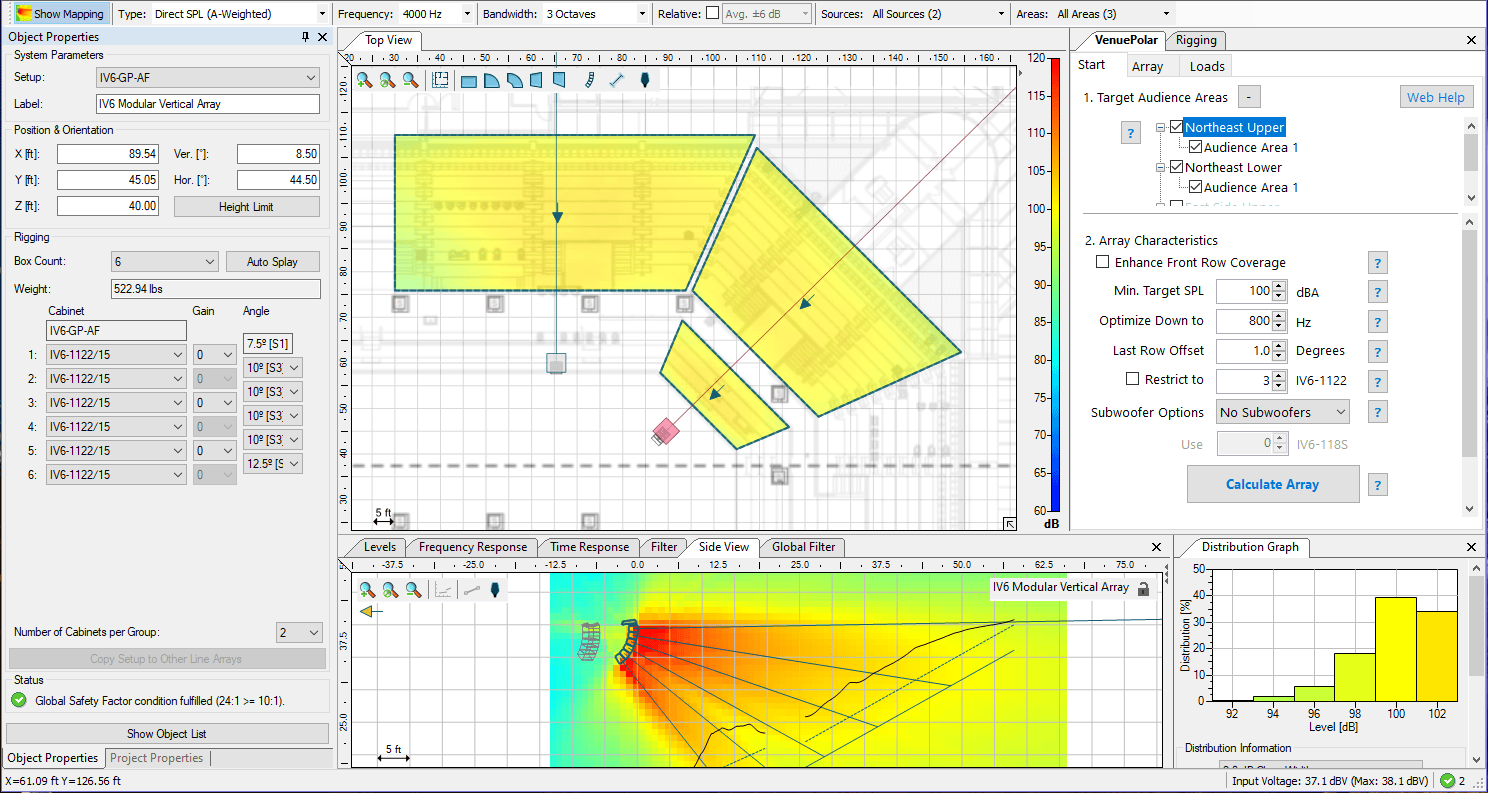

Coverage planning & system specificationSend us the room dimensions, drawings, seating layout and expected use. We can support coverage planning, system architecture, product selection and specification around the needs of the project.
Dimensions, layout, acoustics, use and visual restrictions.
Listening areas, loudspeaker positions, zones and level requirements.
Microphones, DSP, video, accessibility, routing and control.
Select the appropriate products from the ranges Bridge AV represents.
Control where the sound goes.

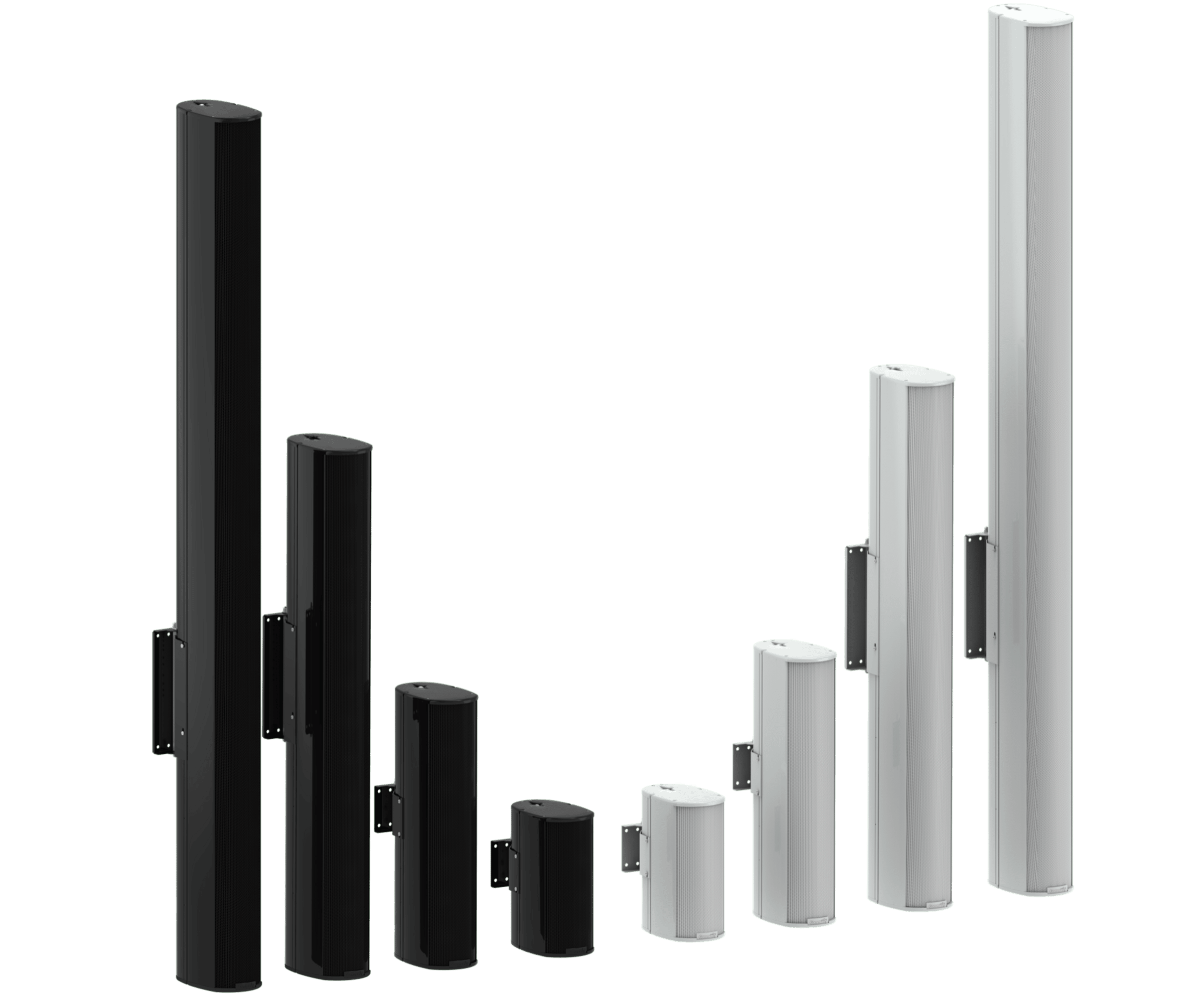

Community ENT & ENTASYS installed loudspeakers
Column loudspeakers can be particularly useful where the room is reflective, visually sensitive or difficult to cover evenly. The design starts with the listening area and the acoustic behaviour of the space rather than with a fixed product list.
- Directivity Narrow vertical coverage can help keep acoustic energy on the audience and away from reflective surfaces.
- Speech System design can prioritise intelligibility and natural spoken-word reproduction throughout the listening area.
- Architecture Slim installed formats can help reduce visual impact in traditional and architecturally sensitive spaces.
- Coverage Main loudspeakers, fills, delay zones and DSP can be planned together as one complete system.
Scale the system around speech, music and room size.

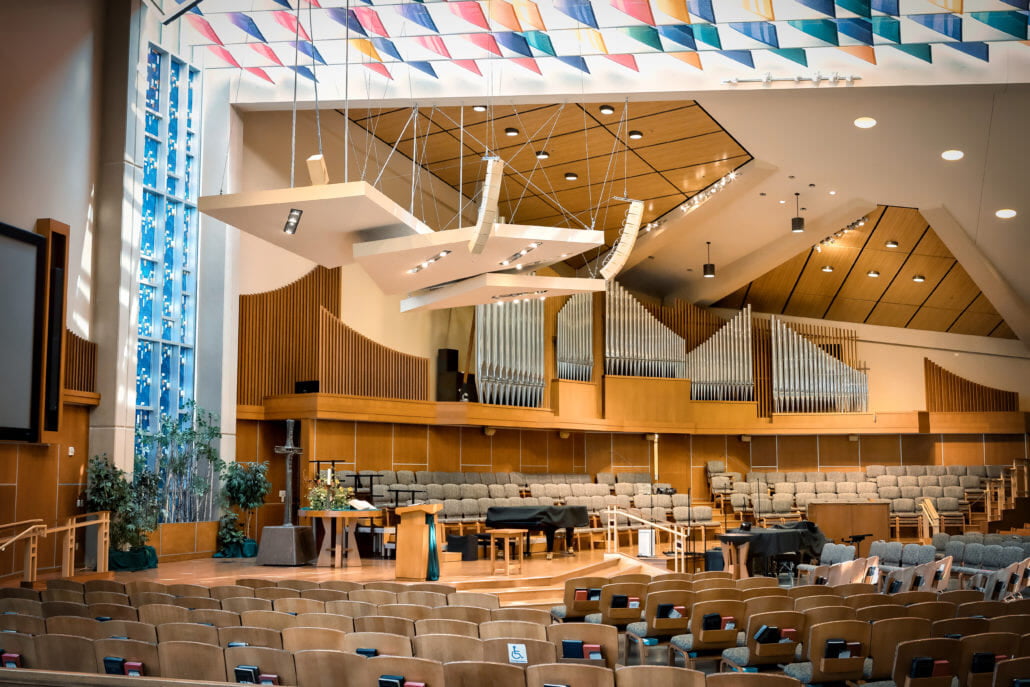

TW AUDiO compact installed systemsSome spaces need substantially more musical headroom and impact while still requiring clear speech and controlled coverage. Compact point-source and installed loudspeaker systems can be built around the room without making a large line array the automatic answer.
- Point source Compact high-output loudspeakers can provide strong performance where the room geometry suits the format.
- Low frequency Subwoofer design can be matched to the musical and performance requirements of the space.
- Fills Smaller models can complete balcony, side or secondary coverage areas without overcomplicating the main system.
- System scale The design can grow with the required output, room size and type of programme material.
Make every voice easy to capture.
Sennheiser EW-D, EW-DX & SpeechLine Digital Wireless
Wireless should be planned around channel count, microphone format, movement around the room and the local RF environment. The aim is reliable everyday use without making the system more complicated than the venue needs.
- Spoken word Handheld, bodypack and headworn formats can be selected around the user and the way the space is operated.
- Performance Scalable digital wireless can support music-led and higher-channel-count systems where required.
- Simple use SpeechLine can suit applications where straightforward day-to-day speech operation is the priority.
- Planning Bridge AV can support channel count, frequency planning and system expansion around the project.
Choose the right level of wireless for the room.

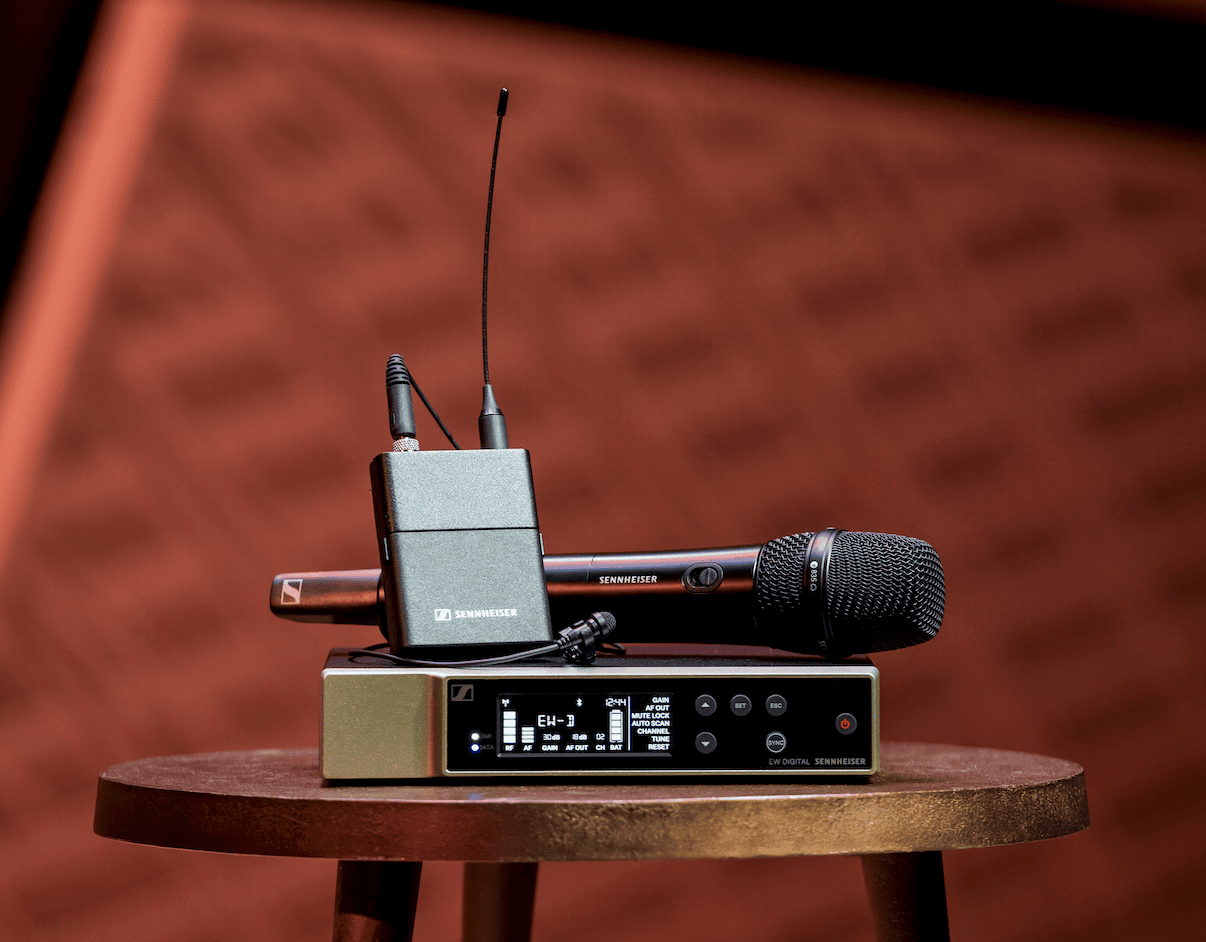

Evolution Wireless DigitalDifferent spaces may prioritise simple operation, higher channel counts, remote monitoring or performance use. The wireless system can be selected around those practical requirements rather than forcing one platform into every project.
Capture the room clearly and operate it simply.

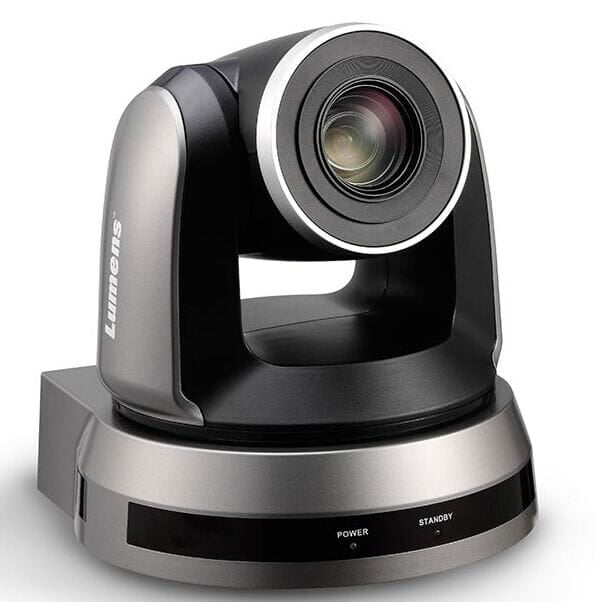

PTZ & tracking camera solutions
Camera systems should be selected around the way the room is actually used: the main presentation positions, music areas, lectern, audience, overflow spaces and the level of operator control required. Bridge AV can support PTZ and tracking camera solutions from straightforward streaming through to more involved multi-camera workflows.
- Shot coverage Choose positions, zoom range and presets around the parts of the room that really need to be captured.
- Operation Systems can be kept simple for volunteers and everyday use, or expanded for more hands-on control where needed.
- Tracking & automation PTZ and tracking options can help maintain a clean presentation without adding unnecessary operational complexity.
- Streaming The camera plan can be built around live streaming, recording and overflow viewing requirements.
Design access into the system from the start.
Ampetronic hearing loop & Auracast listening solutionsAmpetronic
Inclusive listening should be considered from the start of the design. Bridge AV can support Ampetronic hearing loop solutions and Auracast-led listening approaches around coverage, accessibility goals, the structure of the room and the way the main audio system is being delivered.
- Hearing loopsCoverage, spill control and loop layout considered before hardware is finalised.
- AuracastBroadcast-based listening workflows can be considered where they suit the application.
- Accessibility planningChoose the right approach around users, room use and operational simplicity.
- IntegrationConnect the assisted listening system cleanly to the wider programme audio path.
Tell us about the room. We will help shape the solution.
Send us the dimensions, drawings, seating layout, expected use and any existing equipment. Bridge AV can support the trade with system design, coverage planning, product selection and specification.
